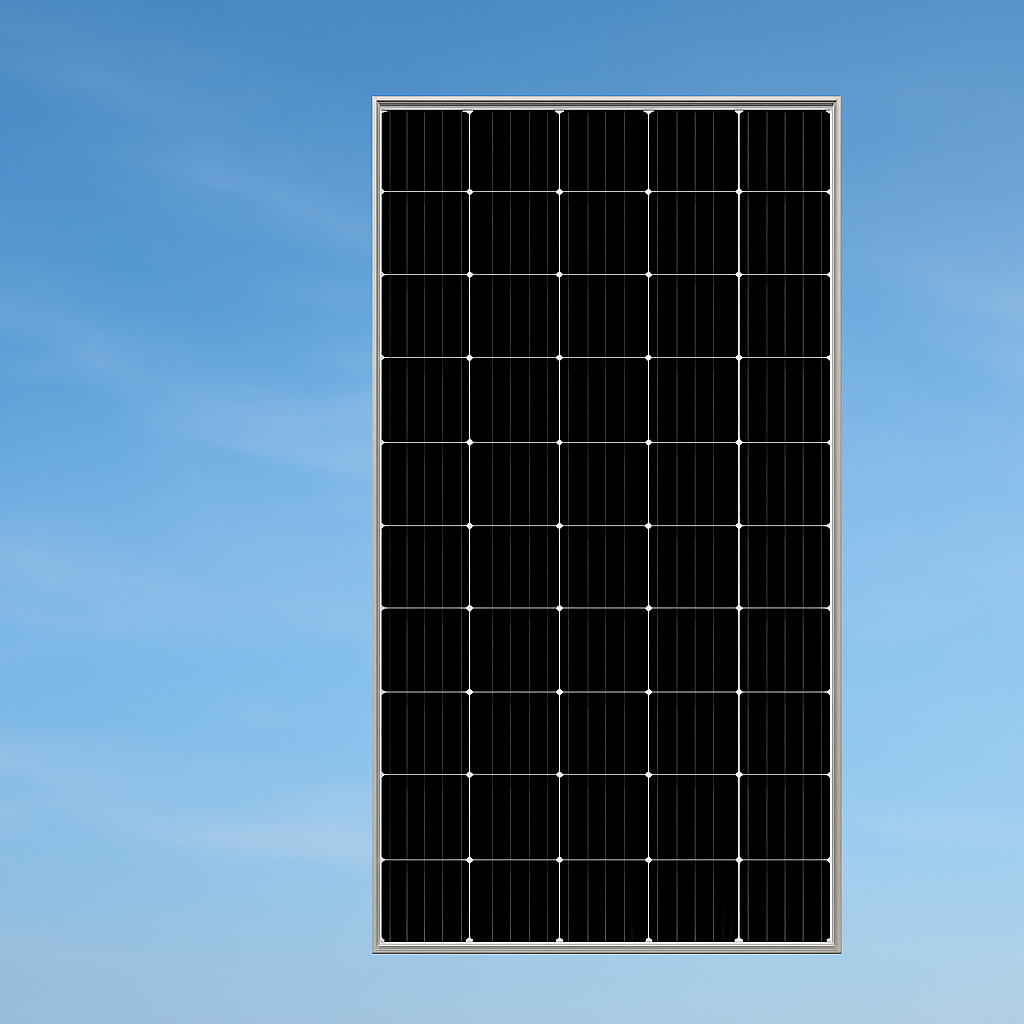

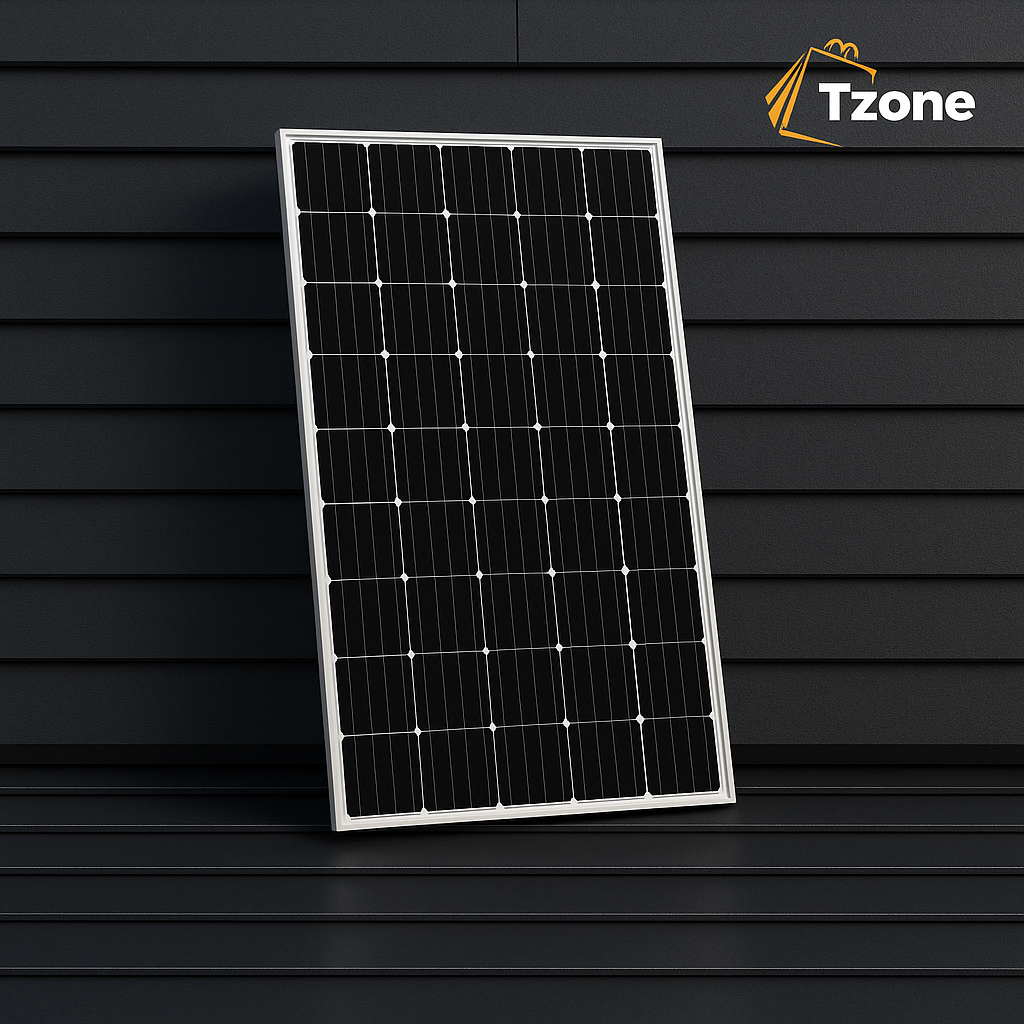

Africell 330W Monocrystalline Solar Panel

Product Description:

The Africell 330W Monocrystalline Solar Panel is engineered for high energy output and efficiency, making it ideal for various residential, commercial, and industrial applications. Utilizing advanced monocrystalline silicon cells, this panel ensures superior performance and longevity.​

Key Features:

• High maximum power output of 330W.​

• Monocrystalline silicon cells for enhanced energy conversion efficiency.​

• Low power tolerance ranging from 0% to +3%, ensuring consistent performance.​

• Minimal degradation under light exposure, maintaining long-term efficiency.​

• Robust design capable of withstanding high wind pressure and snow loads.​

• Passed IEC 61215 2400Pa mechanical load test, confirming structural integrity.​

• 10-year warranty on product materials and processing technology.​

• Power output warranty: 90% output for 10 years and 80% for 25 years.​

• Manufactured in an ISO 9001:2008 certified facility, ensuring adherence to quality management standards.​

• Compliant with IEC61215, IEC61730, and MCS CEC certifications for safety and performance.​

• Suitable for various applications, including on-grid residential rooftops, commercial/industrial rooftops, solar power plants, and off-grid systems.



  Specifications:

  • Model Type: GL-MONO-330W

  • Peak Power (Pmax): 330W

  • Maximum Power Voltage (Vmp): 34.00V

  • Maximum Power Current (Imp): 9.70A

  • Open Circuit Voltage (Voc): 40.50V

  • Short Circuit Current (Isc): 10.28A

  • Module Efficiency: Approximately 20.5%

  • Operating Temperature: -40°C to +85°C

  • Maximum System Voltage: 1000V DC

  • Maximum Series Fuse Rating: 20A

  • Power Tolerance: 0% to +3%

  • Pmax Temperature Coefficients: -0.435%/°C

  • Voc Temperature Coefficients: -0.35%/°C

  • Isc Temperature Coefficients: +0.043%/°C

  • Nominal Operating Cell Temperature (NOCT): 47±2°C

  • Dimensions: 1700mm x 1004mm x 35mm

  • Weight: Approximately 18 kg

  • Front Cover: 3.2 mm tempered glass with high light transmittance

  • Frame: Anodized aluminum alloy

  • Junction Box: IP65 rated

  • Output Cables: TUV certified 4mm², length 90 cm
