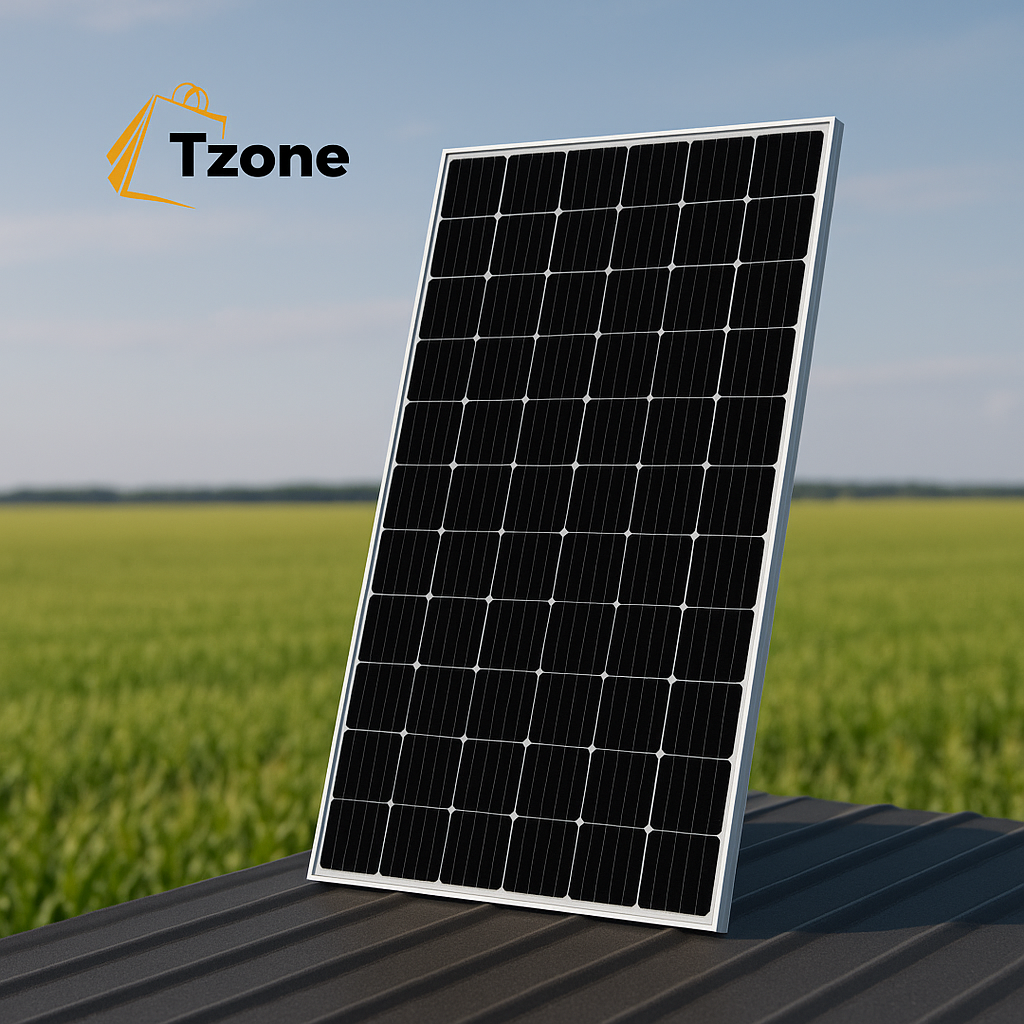

Chevron 350watts mono solar panel

Product Description:

The 350W Monocrystalline Solar Panel is engineered to deliver high energy output and efficiency for various solar applications. Crafted with monocrystalline silicon cells, it ensures superior performance and durability.

Key Features:

• High maximum power output of 350W.

• Monocrystalline silicon cells for enhanced efficiency.

• Module efficiency up to 20.58% under standard test conditions.

• Optimized voltage at full power of 32.84V.

• Operating temperature range from -40°C to +85°C.

• Robust anodized aluminum alloy frame for structural integrity.

• IP68-rated junction box with three diodes for reliable performance.

• MC4-compatible connectors for straightforward installation.

• Positive power tolerance of 0 to +3% ensuring consistent energy production.

• Resistant to induced degradation (PID) for prolonged lifespan.

• Durable tempered glass with anti-reflective coating to maximize light absorption.

• Compliance with international certifications including IEC61215, IEC61730, and CE.

Specifications:

• Maximum Power (Pmax): 350W

• Open Circuit Voltage (Voc): 39.82V

• Short Circuit Current (Isc): 11.24A

• Voltage at Maximum Power (Vmp): 32.84V

• Current at Maximum Power (Imp): 10.66A

• Module Efficiency: 20.58%

• Operating Temperature: -40°C to +85°C

• Maximum System Voltage: 1000VDC / 1500VDC

• Fire Resistance Classification: Type 1 (UL1703) / Class C (IEC61730)

• Maximum Series Fuse Rating: 20A

• Cell Type: Monocrystalline PERC 166 + 83 mm

• Number of Cells: 120 (6×20)

• Module Dimensions: 1755 x 1038 x 35 mm

• Weight: 21kg

• Front Cover: 3.2 mm tempered glass with anti-reflective coating

• Frame: Anodized aluminum alloy

• Junction Box: IP68 with three diodes

• Cables: 4 mm², Length: Vertical: 300 mm, Horizontal: 1400 mm
