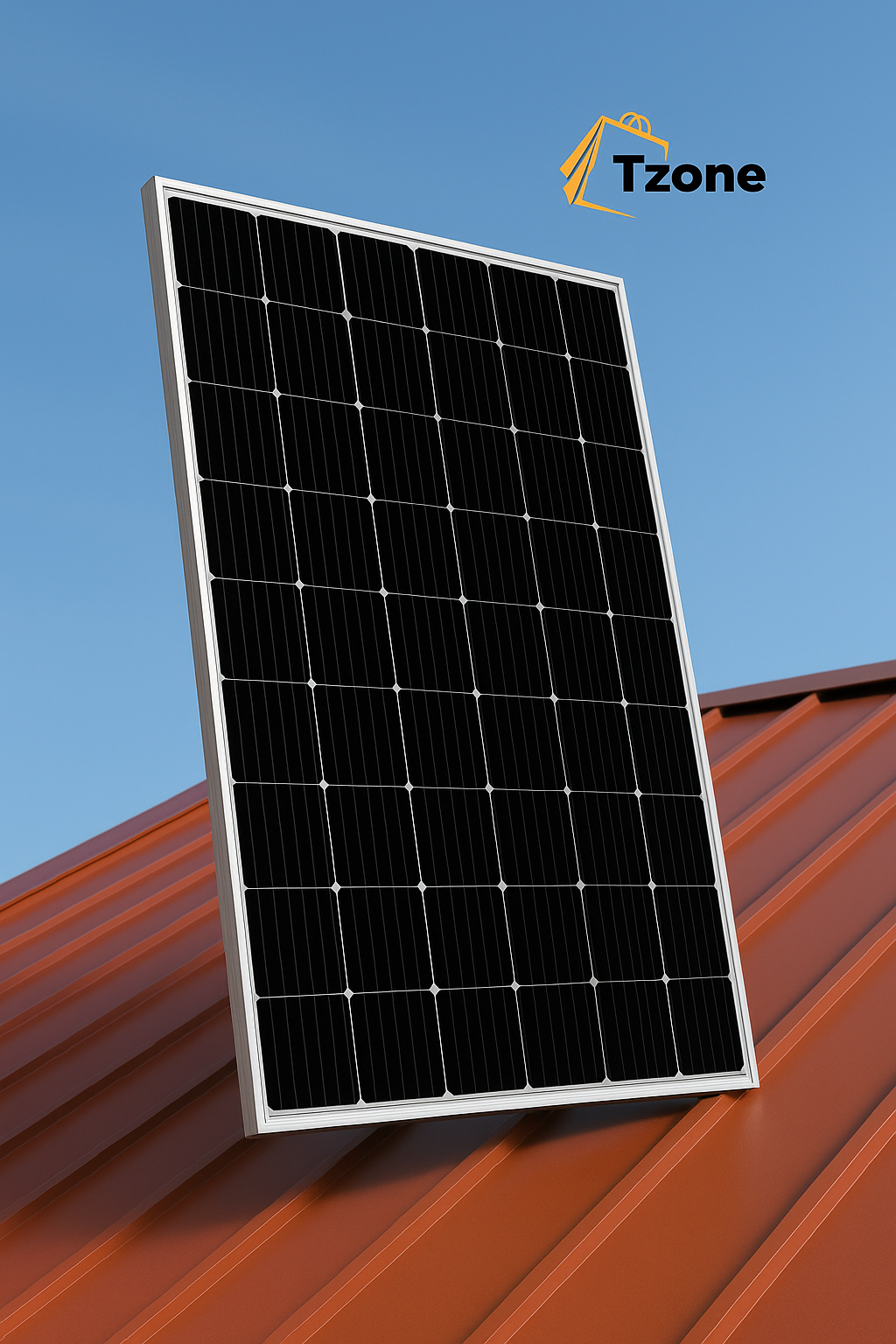

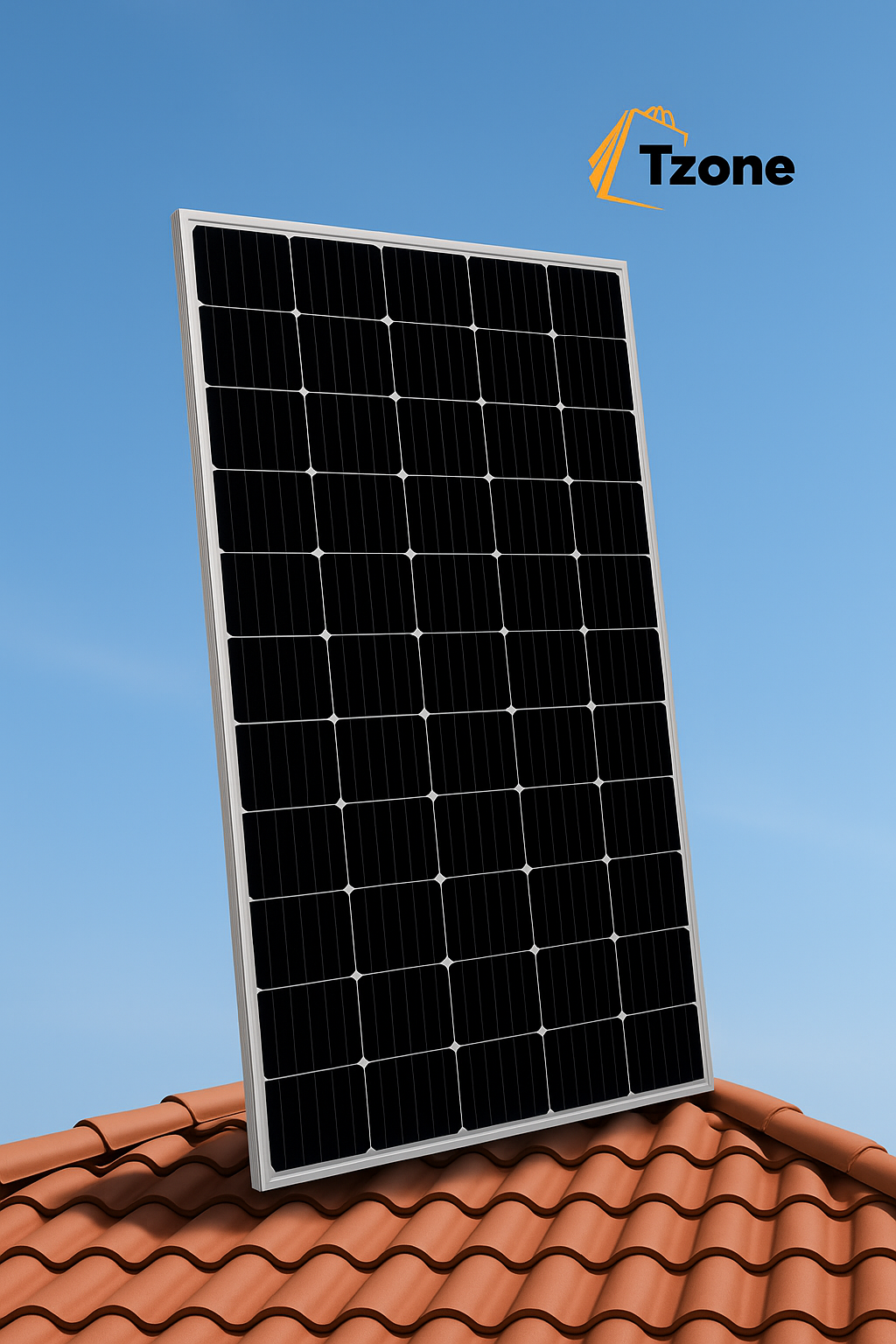

CWorth 340watts mono solar panel

Product Description:

The CWorth  340W Monocrystalline Solar Panel is designed to deliver high energy output and efficiency, suitable for various residential, commercial, and industrial applications. Manufactured with advanced monocrystalline silicon cells, this panel ensures superior performance and durability.

Key Features:

• High maximum power output of 340W.

• Monocrystalline silicon cells for enhanced energy conversion efficiency.

• Low power tolerance ranging from 0% to +5W, ensuring consistent performance.

• Robust frame design capable of withstanding high wind pressure (up to 2400Pa) and snow loads (up to 5400Pa).

• Excellent performance under low-light conditions, enhancing energy yield.

• Positive power tolerance (0~+5W) guaranteed, improving system performance.

• High module conversion efficiency, up to 20.15%.

• Solid PID resistance ensured by solar cell process optimization and careful module BOM selection.

• Adaptable to harsh environments, having passed rigorous salt mist and ammonia tests.

• Manufactured in a facility certified with ISO 9001:2015, ensuring adherence to quality management standards.

• Compliant with international certifications, including CE and RoHS, for safety and performance.

• Compatible with various mounting systems, simplifying installation.

Specifications:

• Model Type: 340W Monocrystalline Solar Panel

• Peak Power (Pmax): 340W

• Maximum Power Voltage (Vmp): 34.2V

• Maximum Power Current (Imp): 9.96A

• Open Circuit Voltage (Voc): 41.7V

• Short Circuit Current (Isc): 10.55A

• Module Efficiency: Up to 20.15%

• Operating Temperature: -40°C to +85°C

• Maximum System Voltage: 1500V DC

• Maximum Series Fuse Rating: 20A

• Dimensions: 1684mm (L) x 1002mm (W) x 35mm (H)

• Weight: Approximately 19kg

• Front Cover: 3.2mm tempered glass with anti-reflection coating

• Frame: Anodized aluminum alloy

• Junction Box: IP67 or IP68 rated with three diodes

• Cables: 4mm², length 900mm

• Connectors: MC4 compatible, IP68 rated
