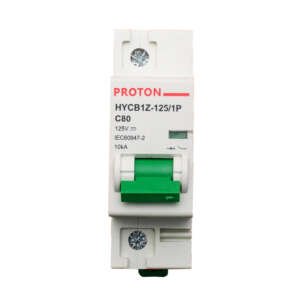

Proton 125/1P DC Breaker C80 125V

1. Product Details:

The Proton 125/1P DC Breaker C80 125V is a highly reliable single-pole direct current (DC) circuit breaker designed for efficient protection of DC-powered circuits. With a rated current of 80A and a voltage rating of 125V, this breaker is ideal for use in renewable energy systems, battery banks, and other DC applications that require robust protection. It features a thermal-magnetic trip mechanism that provides overload and short-circuit protection. This breaker has a high breaking capacity, ensuring quick disconnection of circuits during faults to prevent equipment damage. Built with durability and safety in mind, it offers an easy installation process with standard DIN rail compatibility.

2. Key Features:

• Rated Current: 80A, suitable for high-current DC circuits.
• Voltage Rating: 125V DC, ideal for low-voltage DC systems and applications.
• Single Pole Design: One-pole operation for effective protection in DC circuits.
• High Breaking Capacity: Efficiently interrupts fault currents to prevent damage to devices and wiring.
• Overload Protection: Automatically trips when the current exceeds safe levels, protecting the circuit from overload.
• Short Circuit Protection: Rapid disconnection in case of a short circuit, maintaining system integrity.
• Thermal-Magnetic Trip Mechanism: Dual protection combining thermal overload protection with magnetic short-circuit protection.
• Compact Size: Designed to fit easily in electrical panels without occupying excessive space.
• DIN Rail Mountable: Easy to install on standard DIN rails for secure placement in electrical panels.
• Clear Status Indicator: Visual indicator to show the operational status of the breaker.
• Durable Construction: Made from high-quality materials to ensure long-lasting reliability.
• Safety Certified: Meets international safety standards, providing peace of mind in critical applications.
• Wide Application: Ideal for renewable energy systems, battery-powered systems, telecommunications, and other DC circuits.

3. Specifications:

• Brand: Proton
• Model: 125/1P DC Breaker C80
• Rated Current: 80A
• Voltage Rating: 125V DC
• Number of Poles: Single Pole
• Breaking Capacity: 6kA
• Frequency: 50/60 Hz (for DC applications)
• Tripping Characteristics: C curve (medium overload protection)
• Mounting Type: DIN rail mountable
• Dimensions: 90 x 75 x 75 mm
• Weight: 0.3 kg
• Environmental Protection Rating: IP20 (suitable for indoor use)
• Operating Temperature Range: -25°C to +55°C
• Standards Compliance: IEC 60947-2, UL 489
• Warranty: 1-year limited warranty
• Certifications: CE, RoHS compliant
